Boom and Scissor Hoists

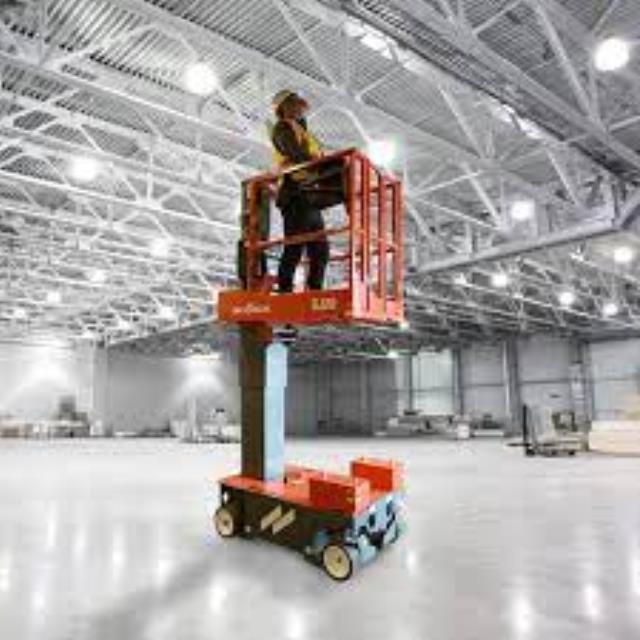

Hoist 20' Vertical mast


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

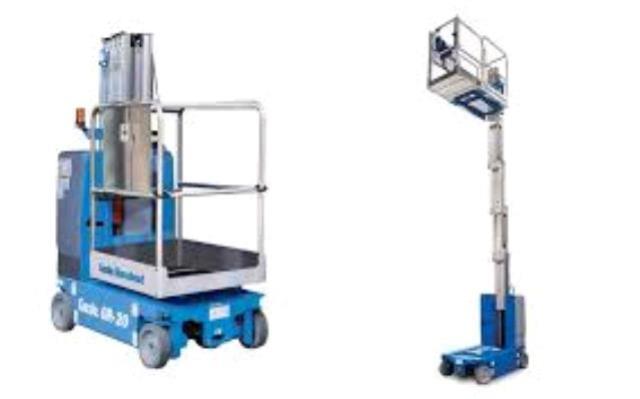

Manufacturer: GENIE

Model: GR-20

Daily: $160.00

Weekly: $481.00

Quantity: for a period of
day(s) week(s)

Additional Information

Work Height: 25' 6" (7.77 m)
Raised Platform Height: 19' 6" (5.94 m)
Lowered Platform Height: 30" (0.76 m)
Overall Width: 31.5" (0.80 m)
Overall Length: 54" (1.37 m)
Stowed Height (Top of Mast): 79.5" (2.0 m)
Platform Width (Inside Dimension): 27" (0.69 m)
Platform Length (Inside Dimension): 36" (0.91 m)
Specifications: SJ20
Traversing Platform (Roll Out): 16" (0.41 m)
Ground Clearance (lowest point): 1" (2.54 cm)
Ground Clearance (highest point): 3.5" (9 cm)
Wheelbase: 44" (1.12 m)
Weight: 2,640 lbs (1,107 kg)
Gradeability: 25%
Turning Radius (Inside): 0
Turning Radius (Outside): 55" (1.40 m)
Lift Time (With Rated Load): 25 sec
Lower time (With Rated Load): 25 sec
Drive Speed (Stowed): 2.5 mph (4.0 km/h)
Drive Speed (Raised): 0.3 mph (0.5 km/h)
Maximum Drive Height: Full Height
Capacity (Overall): 350 lbs (159 kg)
Local Floor Load (With Rated Load): 148 psi (792 kPa)
Overall Floor Load (With Rated Load): 238 psf (11.4 kPa)
Maximum # of Persons at 0 mph (0 m/s): Wind Rating 1
Maximum # of Persons up to 28 mph (12.5 m/s) Wind Rating: 0 (Optional 1)
Tire Type: Solid, N/M
Tire Size: 10 x 4

Also check the following item(s) related to the above:

* Please call us with any questions about our hoist 20 foot vertical mast rentals serving Bensenville IL, Des Plaines, and the Chicagoland Suburban Area.
