Compaction Plates & Rollers

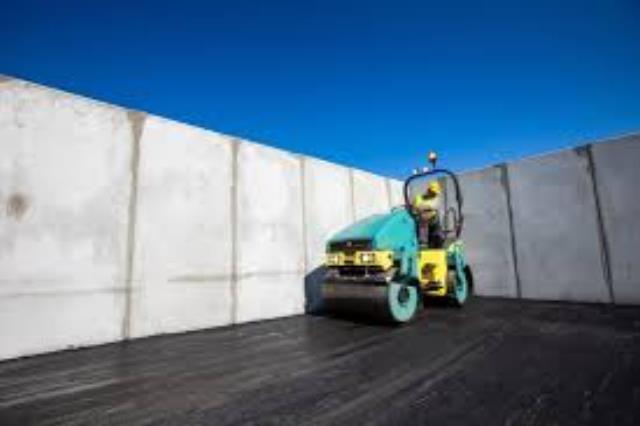

Vibratory 3 ton asphalt roller


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: Ammann

Model: Ammann 26.1-2

Daily: $345.00

Weekly: $1,275.00

Quantity: for a period of
day(s) week(s)

Additional Information

DIMENSIONS
DRUM WIDTH (47.2 in)
WORKING WIDTH WITH OFFSET (48.8 in)
TRANSPORT LENGTH (folded ROPS) (101.8 in)
MACHINE HEIGHT (folded ROPS) (76.2 in)
MACHINE WIDTH (total) (53.1 in)
WHEELBASE (68.5 in)
GROUND CLEARANCE (11 in)
WEIGHT & OPERATING CHARACTERISTICS
OPERATING WEIGHT MAX. (5,853 lb)
STATIC LINEAR LOAD AVG. (57.4 lb/in)
MAX. WORKING SPEED (6.2 MPH)
GRADEABILITY WITHOUT VIBRATION 30%
GRADEABILITY WITH VIBRATION 25%
TURNING RADIUS (INNER) (94.5 in)
DRUM OFFSET 40 mm (1.6 in)
ENGINE
MANUFACTURER Kubota
ENGINE TYPE D1703-M-DI 3TNV80F
ENGINE SPEED 2100 / 2400 rpm
POWER OUTPUT ISO 3046 24,8 HP
EMISSION STAGE EU Stage V / U.S. EPA Tier 4 Final
COMPACTION FORCES
AMPLITUDE I / II (0.020 in)
FREQUENCY I (3,480 vpm)
FREQUENCY II (3,960 vpm)
CENTRIFUGAL FORCE I (7,644 lbf)
CENTRIFUGAL FORCE II (9,217 lbf)
MAXIMUM RECOMMENDED COMPACTED LIFT THICKNESS
AT OPTIMAL WORKING CONDITIONS
SAND / GRAVEL (9.8 in)
MIXED SOILS (7.1 in)
STABILISATION (4.7 in)
ASPHALT (3.9 in)
MISCELLANEOUS
BRAKES OPERATING Hydrostatic
BRAKES PARKING / EMERGENCY Multiple-disc spring brake
FUEL TANK CAPACITY (9.2 gal)
WATER TANK CAPACITY (50.2 gal)
TYPE OF WATERING Pressure
HYDRAULIC TANK CAPACITY (7.5 gal)
STEERING ANGLE 30
OSCILLATION ANGLE 6,5

Also check the following item(s) related to the above:

* Please call us with any questions about our vibratory 3 ton asphalt roller rentals serving Bensenville IL, Des Plaines, and the Chicagoland Suburban Area.
